GIS for Retail: How Location Data Drives Growth

What Is GIS for Retail?

A Geographic Information System (GIS) is a framework for collecting, managing, and analyzing spatial data. In the retail context, GIS layers geographic information (demographics, foot traffic, competitor locations, zoning, customer behavior) onto a single map to answer one question: where should your next store go?

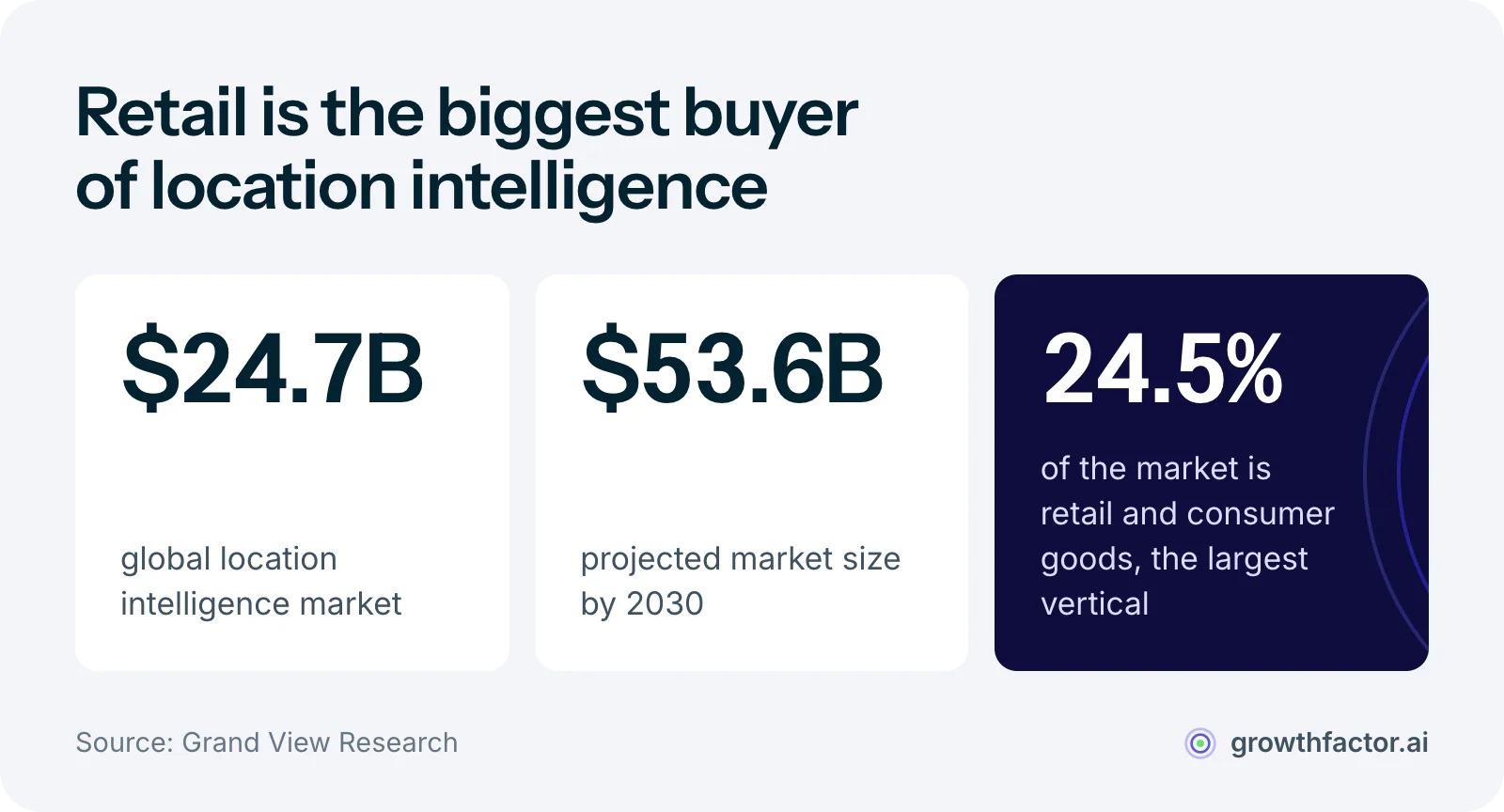

The retail industry calls this "location intelligence," and it has grown into a $24.7 billion global market projected to reach $53.6 billion by 2030, according to Grand View Research. Retail and consumer goods account for roughly 24.5% of that market, the largest single vertical.

GIS for retail combines three core functions: data collection (pulling signals from census records, mobile devices, transaction databases, and public records), spatial analysis (calculating how those data points interact across geography), and visualization (turning 50,000 rows of data into a heatmap that shows where demand is high and supply is low).

For multi-unit retailers, restaurant groups, and franchise operators, GIS is the foundation of every site selection, trade area, and market expansion decision. The alternative is what most teams still do: pull demographics from one tool, foot traffic from another, competitor data from a third, then manually combine everything in spreadsheets. According to McKinsey research, retailers using geospatial analytics have identified opportunities to increase sales by as much as 20% through data-driven network optimization.

Six Data Layers That Power Retail GIS

Every GIS platform stacks data layers onto a base map. The question for retail expansion teams is which layers actually matter for location decisions. Most platforms emphasize one or two. A complete retail GIS workflow requires all six.

Most legacy platforms cover two or three of these layers well and ignore the rest. Zoning data in particular is almost universally absent from retail GIS tools, despite being the single fastest way to disqualify a site. If a municipality has classified a parcel as residential or institutional, no amount of favorable demographics will change that.

How Retail Expansion Teams Use GIS

GIS for retail is not one thing. It is a set of analytical workflows that expansion teams apply at different stages of the site selection process. The three highest-impact applications are site scoring, trade area analysis, and whitespace identification.

Site Scoring and Suitability Analysis

Suitability analysis is the core GIS workflow for retail site selection. It works by scoring candidate locations against weighted criteria (demographics fit, foot traffic, visibility, competitive density, market potential) to produce a composite score that allows apples-to-apples comparison across dozens or hundreds of sites.

The practical value is sample size. A team that manually evaluates five sites picks from five options. A team that uses GIS to score 50 sites picks from the best of 50. Best-in-class expansion teams evaluate 30 to 50 sites per opening, according to practitioners at national retail brands. The difference in outcome is not incremental; it is the difference between "we found a decent site" and "we found the best site in the market."

At GrowthFactor, every site receives a 0-to-100 score with a transparent breakdown across five lenses: foot traffic, demographics fit, market potential, competition analysis, and visibility. The score is not a black box. Each lens includes a written justification explaining exactly why the site scored the way it did, so expansion teams can walk into committee with answers when the CFO asks "how did you get this number?"

Market Expansion and Whitespace Analysis

Whitespace analysis is the GIS workflow that answers "where should we expand next?" rather than "is this specific site good?" It maps your existing network alongside competitor locations, demand indicators, and customer density to identify markets where demand exceeds supply.

The method works by overlaying your store network onto a demographic and competitive map. Areas with high target-customer density and low category penetration light up as expansion opportunities. Areas where you and your competitors are already clustered show as saturation zones. The output is a ranked list of markets, not just individual sites.

Trade Area Analysis: Defining Your Real Customer Catchment

A trade area is the geographic boundary from which a store draws the majority of its customers. Getting it right determines whether your demographic analysis, cannibalization modeling, and revenue forecasting reflect reality or assumption.

Most retail teams default to radius rings (a 3-mile or 5-mile circle around a site). This is the simplest method but also the least accurate, because it ignores road networks, natural barriers, and actual travel patterns. A 3-mile radius in Manhattan covers a fundamentally different customer base than a 3-mile radius in suburban Texas.

One specialty frozen dessert brand discovered through customer spotting that their actual trade area extended to 23 minutes, not the 16-minute radius they had assumed for years. That seven-minute difference meant their demographic analysis had been systematically underestimating their addressable customer base, leading to missed expansion opportunities in markets they had written off as "too small."

Cannibalization Modeling

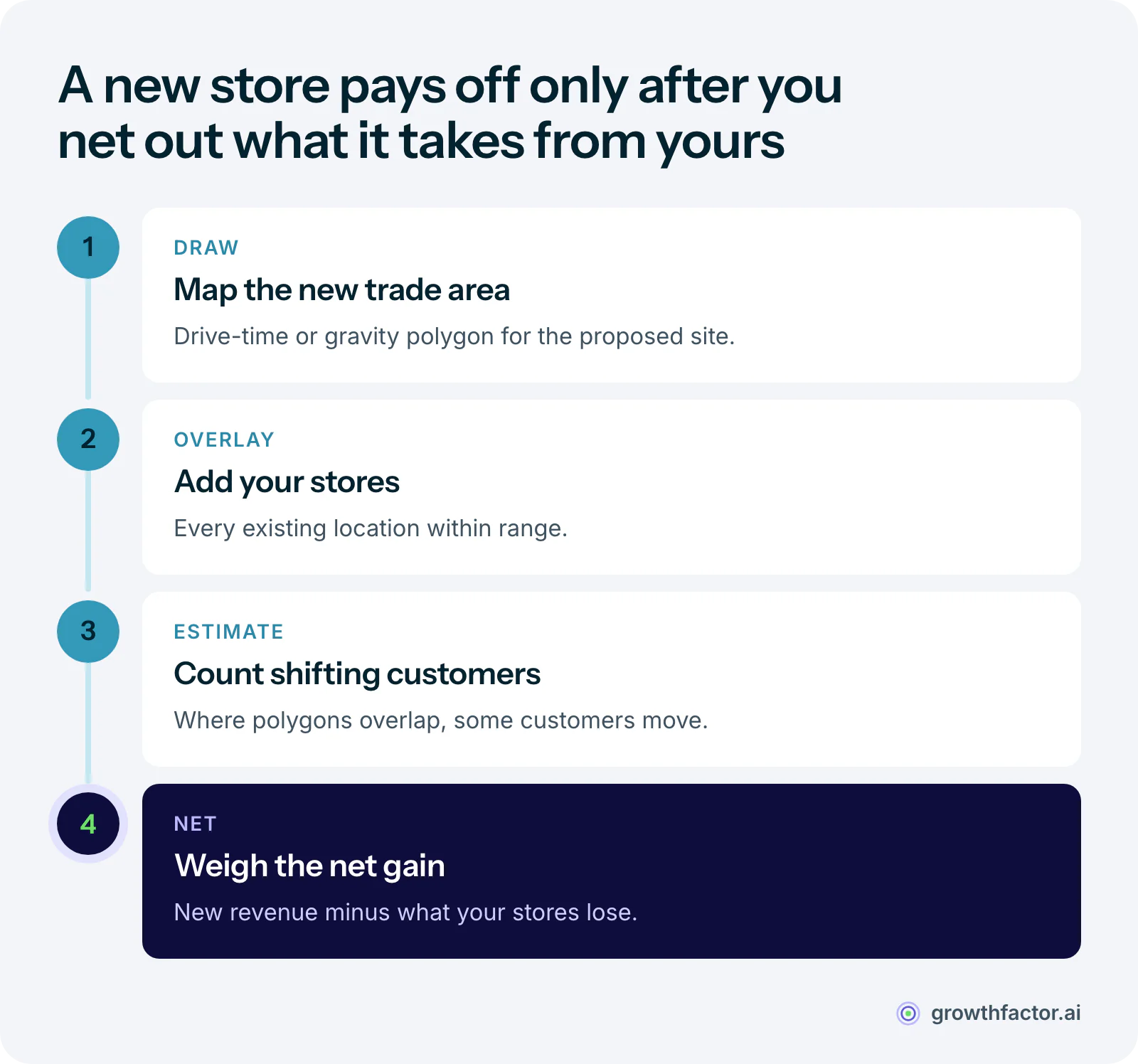

For multi-unit operators, the biggest risk of expansion is not opening a bad store. It is opening a new store that cannibalizes an existing one. GIS-based cannibalization modeling uses trade area overlap analysis to estimate how much revenue a new location would pull from your current network.

The analysis compares the trade area polygon of a proposed site against every existing store within a defined radius. Where polygons overlap, the model estimates the share of customers likely to shift. The output is a dollar estimate of cannibalization impact per existing store, so the expansion team can evaluate whether the net gain (new store revenue minus cannibalized revenue) justifies the investment.

Competitive Intelligence and Retail Void Analysis

Retail void analysis is the GIS workflow that identifies gaps in the competitive landscape. It maps every competitor location in a category, overlays demand indicators (population density, income, spending patterns), and flags areas where demand exists but supply does not.

The practical application is straightforward: if your target customer lives in a market and no one in your category serves them, that is a void. If three competitors already operate there and the market cannot support a fourth, that is saturation. GIS makes both conditions visible on a map rather than requiring your team to manually research each market.

Void analysis also reveals a less obvious opportunity: markets where competitors are underperforming. A competitor location with declining foot traffic in a market with growing demographics may signal an opportunity to enter with a stronger format or better location.

According to Coresight Research, U.S. retailers opened 5,970 stores in 2024 (the highest since Coresight began tracking in 2012) while 7,325 stores closed. That simultaneous expansion and contraction means the retail map is constantly shifting, and static competitive analysis goes stale within months. GIS platforms that refresh competitor data regularly give expansion teams a current view of where opportunities are opening up.

GIS Platforms for Retail: What to Know Before You Buy

The GIS landscape for retail breaks down into four categories. Understanding which category a platform falls into determines whether it will actually serve your expansion workflow or just add another tool to the stack.

The choice between these categories depends on your team's technical capacity, the volume of sites you evaluate, and whether you need general-purpose mapping or a workflow purpose-built for retail expansion.

Enterprise GIS platforms like Esri ArcGIS Business Analyst offer the deepest analytical capabilities, with over 15,000 demographic variables and the ability to build custom suitability models. The tradeoff is complexity: ArcGIS requires trained GIS analysts to operate effectively, and licensing costs place it firmly in the enterprise category.

Cloud platforms like CARTO offer modern spatial analytics connected to data warehouses, with 100+ spatial functions and a Data Observatory of 12,000+ datasets. They are powerful for data science teams but require engineering resources that most retail expansion teams do not have in-house.

Business mapping tools (Maptitude, Maptive) provide the most accessible entry point for teams without GIS expertise. They cover demographics and basic trade area analysis at a fraction of enterprise GIS pricing. The limitation is that they typically lack the foot traffic, zoning, competitive, and forecasting layers that drive site selection decisions.

Retail site selection platforms occupy a narrower lane: they are designed specifically for the expansion team workflow, from initial site screening through committee presentation. GrowthFactor falls in this category. Our platform generates a complete site analysis (scoring, demographics, foot traffic, competitors, cannibalization, zoning) in approximately two seconds, with analyst support available for deeper evaluation. The design philosophy is that the platform handles data aggregation so analysts spend time on analysis, not data gathering.

Measuring GIS ROI in Retail

GIS ROI in retail comes from three sources: revenue growth (finding better sites), risk avoidance (eliminating bad sites before you invest), and operational efficiency (reducing the time and cost of analysis).

McKinsey's research on geospatial analytics in retail found that retailers using network optimization through spatial analytics identified revenue opportunities of up to 20%. A separate McKinsey analysis noted that viewing the store network as a system, where each location's value includes its role as a showroom driving online sales across a wider geography, fundamentally changes how expansion teams evaluate ROI.

The risk-avoidance ROI is harder to quantify but often larger. When a store buildout costs $2 million to $10 million, avoiding a single bad location can pay for years of GIS platform costs. As one expansion leader described it: "It may not be so much about opening the winning one as it is eliminating the losers. If you can just increase your batting average by not opening bad stores, that's super important."

Glass Box Forecasting: Why Model Transparency Matters

The most consequential output of retail GIS is the revenue forecast. It is the number that goes to committee, the number the CFO scrutinizes, and the number that determines whether a $5 million lease gets signed.

Legacy forecasting models have a persistent problem: they are black boxes. A platform builds a model over six to nine months, hands it to the retailer, and offers no explanation of what variables drive the output or how to adjust it when the business changes. The retailer takes a forecast to their board, the board asks "how did you get this number?", and the analyst has no answer. This is not a hypothetical scenario. It is the most common frustration we hear in sales conversations with expansion teams at national brands.

Glass Box forecasting is the opposite approach. It means building the model collaboratively with the retailer, explaining every variable and weighting, letting the expansion team tweak inputs based on their knowledge of the business, and updating the model regularly as conditions change.

One example: a national frozen dessert brand hypothesized that stores with higher pint mix (packaged pint sales as a percentage of revenue) would perform better. GrowthFactor built a custom model to test the hypothesis and discovered that pint mix was not a statistically significant predictor of store performance. That finding saved the brand from optimizing their expansion strategy around the wrong metric.

The difference between black box and glass box forecasting is not a technical distinction. It is an organizational one. When the expansion team understands how the forecast works, they can defend it in committee, adjust it when market conditions change, and build institutional confidence in data-driven decisions rather than treating the model as an oracle they either trust blindly or ignore entirely.

The GIS Market in 2026: What Is Changing

Three shifts are reshaping how retail teams use GIS.

AI-augmented spatial analysis. Machine learning models are being layered onto traditional GIS workflows to identify non-obvious patterns in location data. Rather than scoring sites against static criteria, AI models can identify which variables actually predict performance for a specific brand, and weight them accordingly. The global GIS market reached $14.4 billion in 2024 according to IMARC Group, growing at 11.1% CAGR, with AI integration being the primary growth driver.

Real-time data layers. Foot traffic and mobility data, once available only as quarterly or annual summaries, is now refreshed weekly or daily. This means trade area analysis and competitive monitoring can reflect current conditions rather than lagging indicators. Esri and Retail Systems Research (RSR) found that best-in-class retailers are using location intelligence to test markets before committing, treating location data as a decision input rather than a post-hoc validation.

Platform consolidation. The typical retail expansion team has been juggling five to ten tools: a GIS platform for mapping, a separate foot traffic provider, a listings database, demographic data from government sources, spreadsheets for scoring, and email for deal flow. The trend is toward integrated platforms that consolidate these workflows. This is the direction GrowthFactor is built around: replacing the multi-tool workflow with a single platform that combines site scoring, trade area analysis, competitive intelligence, zoning, cannibalization modeling, and deal tracking.

Frequently Asked Questions about GIS for Retail

What is the difference between GIS and location intelligence in retail?

GIS is the technology framework for collecting, managing, and analyzing spatial data. Location intelligence is the business discipline of using that spatial data to make decisions. In practice, retail teams use GIS tools to produce location intelligence outputs: site scores, trade area maps, competitive density analyses, and revenue forecasts. Think of GIS as the engine and location intelligence as what you build with it.

How does GIS help retailers avoid opening stores in bad locations?

GIS disqualifies sites before you invest significant time or money. Zoning layers can eliminate a site in minutes if the parcel does not permit your use class. Cannibalization modeling shows whether a new location will steal revenue from your existing stores. Demographic analysis reveals whether your target customer exists in sufficient density. Each of these checks can prevent a $2 million to $10 million mistake.

What data layers does GIS combine for retail site selection?

A complete retail GIS analysis layers six data types: demographics (population, income, household composition), foot traffic and mobility data (visit counts, customer origins, dwell time), competitor proximity and density, psychographics (lifestyle segments, spending behaviors), zoning and regulatory classifications, and trade area polygons (drive-time or gravity-model-defined catchment boundaries). Most platforms cover two or three of these well; few cover all six.

Can small retail chains use GIS, or is it only for large brands?

GIS is available at every price point. Open-source tools like QGIS are free. Business mapping tools like Maptitude start at mid-tier annual licenses. Purpose-built retail platforms like GrowthFactor offer tiered pricing that scales with team size and usage. A five-location chain evaluating its sixth site has the same need for accurate trade area analysis and demographic data as a 500-location national brand. The analytical methods are identical; the scale differs.

How much does GIS software cost for retail site selection?

Costs range widely by category. Open-source GIS (QGIS) is free but requires technical expertise and separate data subscriptions. Business mapping tools run $250 to $2,500 per year. Enterprise GIS platforms (Esri ArcGIS) typically require five-figure annual commitments. Purpose-built retail site selection platforms range from a few hundred to several thousand per month depending on features and support levels. The total cost also depends on whether you need separate subscriptions for foot traffic data, demographic data, and listings access, or whether the platform bundles these.

What is a trade area in retail GIS, and how is it calculated?

A trade area is the geographic boundary from which a store draws the majority of its customers. The simplest calculation is a radius ring (e.g., a 5-mile circle), but this ignores road networks and travel patterns. More accurate methods include drive-time polygons (contours based on actual road travel time), gravity models (weighted by store size and competitive pull), and customer spotting (mapped from actual transaction data). The right method depends on your retail format: urban QSR benefits from walk-time analysis while suburban big-box retail needs drive-time polygons.

How do retailers use GIS to find white space in a market?

Whitespace analysis overlays demand indicators (target customer density, spending power, category affinity) against supply indicators (existing stores in your category, including your own). Areas where demand is high and supply is low are flagged as expansion opportunities. The analysis can be run at the market level (which MSAs should we enter?) or at the site level (where within this market is the best location?). The output is typically a ranked list of markets or a heatmap showing opportunity density.

What is the difference between GIS software and a site selection platform?

GIS software (Esri ArcGIS, QGIS, CARTO) provides general-purpose spatial analysis tools that can be applied to any industry or use case. A site selection platform is purpose-built for the retail expansion workflow: it pre-integrates the data layers retail teams need, automates site scoring, includes deal tracking and pipeline management, and generates committee-ready reports. The distinction is between a toolkit you can build anything with and a workflow designed for one specific job.

How long does it take to analyze a site using GIS tools?

It depends on the tool and the depth of analysis. Pulling a basic demographic report from an enterprise GIS platform can take 24 to 48 hours when factoring in data gathering and formatting. A purpose-built site selection platform like GrowthFactor generates a complete analysis (site score, demographics, foot traffic, competitors, cannibalization estimate, zoning, and traffic counts) in approximately two seconds. Analyst-prepared deep dives with revenue forecasts and analog matching take longer, typically one to three business days, but the automated layers eliminate the data gathering that used to consume the majority of analyst time.

What GIS data sources are most important for retail expansion?

The five most critical data sources for retail site selection are: U.S. Census and American Community Survey data (demographics baseline), mobile location data providers (foot traffic and visitation patterns), business listing databases (competitor and complement locations), psychographic segmentation providers like Esri Tapestry or Experian Mosaic (lifestyle and spending behavior), and municipal zoning records (use classification and building restrictions). The most common mistake is over-indexing on demographics alone. Demographics tell you who lives in a trade area. Foot traffic tells you who actually visits. Zoning tells you whether you can build. You need all three.
